SilverLight's FAQ Part 3






Introduction and Goal





SilverLight's
FAQ - Part 3






Introduction




Other Silverlight FAQ's




Can you
explain one way and two way bindings?




Can you explain One
time binding?





Can you demonstrate a Simple example of OneWay and TwoWay?





What are the different ways provided to do layout in SilverLight?




Can you explain how Canvas layout actually works?



How can we implement
Grid Layout?



How can we
implement Stack Layout?




What are the different steps involved in consuming WCF service in Silverlight?



Why
can't we consume ADO.NET directly in SilverLight?



How
can we do database operation using SilverLight?



Source Code




Introduction



This article discusses 12
FAQ's which revolve around bindings, layouts, consuming WCF services and how to
connect to database through silver light. Article first starts with bindings
and discusses about one way, two way and one time bindings. Article then moves
on to discuss three different ways to layout and position silverlight controls.
Finally we end up the article talking about how to consume WCF services in
Silverlight and how can we do database operations.



I have collected around 400 FAQ questions and
answers in WCF, WPF, WWF, SharePoint, design patterns, UML etc.





Other Silverlight FAQ's


Silverlight FAQ Part 1:-

SilverLight FAQ Part 1
This tutorial has 21
basic FAQ's which will help you understand WPF , XAML , help your build your
first silverlight application and also explains the overall silverlight
architecture.


SilverLight FAQ Part 2 (Animations and
Transformations):
-
SilverLightFAQPart2.aspx This tutorial has 10 FAQ questions which starts
with silverlight animation fundamentals and then shows a simple animated
rectangle. The article then moves ahead and talks about 4 different ways of
transforming the objects.




Can you explain one way and two
way bindings ?

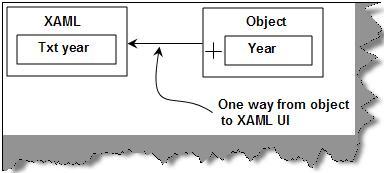

One way binding


As the name so the
behavior. In one way bindings data flows only from object to UI and not
vice-versa. For instance you can have a textbox called as ‘TxtYear' which is
binded with an object having property ‘Year'. So when the object value changes
it will be reflected on the silverlight UI, but the UI cannot update the year
property in the object.










It's a three step procedure to implement one way
binding. First create your class which you want to bind with the silverlight
UI. For instance below is a simple class called as ‘ClsDate' with a ‘Year'
property.



public class clsDate
{
private int _intYear;
public int Year
{
set
{
_intYear = value;
}
get
{
return _intYear;
}
}
}

In the second step you need
to tie up the ‘Year' property with a silver light UI text box. To bind the
property you need to specify ‘Binding Path=Year' in the text property of the
text box UI object. ‘Year' is the property which we are binding with the text
box UI object.


<TextBox x:Name="txtCurrentYear" Text="{Binding Path=Year}" Height="30" Width="150" VerticalAlignment="Center" HorizontalAlignment="Center"></TextBox>



The final step is to bind the text box data
context with the date object just created.


public partial class Page : UserControl
{
public Page()
{
InitializeComponent();
clsDate objDate = new clsDate();
objDate.Year = DateTime.Now.Year;
txtCurrentYear.DataContext = objDate;
}
}

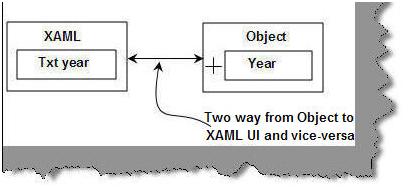

Two way binding


Two way binding ensure data
synchronization of data between UI and Objects. So any change in object is
reflected to the UI and any change in UI is reflected in the object
.









To implement two way
binding there are two extra steps with addition to the steps provided for ‘OneWay'.
The first change is we need to specify the mode as ‘TwoWay' as shown in the
below XAML code snippet.


<TextBox x:Name="txtEnterAge" Text="{Binding Path=Age, Mode=TwoWay}" Height="30" Width="150" VerticalAlignment="Center" HorizontalAlignment="Center"></TextBox>

Second change is we need to
implement ‘INotifyPropertyChanged' interface. Below is the class which shows how
to implement the ‘INotifyPropertyChanged' interface. Please note you need to
import ‘System.ComponentModel' namespace.


public class clsDate : INotifyPropertyChanged
{
public event PropertyChangedEventHandler PropertyChanged;
private int _intYear;
public int Year
{
set
{
_intYear = value;
OnPropertyChanged("Year");
}
get
{
return _intYear;
}
}
private void OnPropertyChanged(string property)
{
if (PropertyChanged != null)
{
PropertyChanged(this,new PropertyChangedEventArgs(property));
}
}}

The binding of data with
data context is a compulsory step which needs to be performed.




Can you explain One time binding?


In one time binding data
flows from object to the UI only once. There is no tracking mechanism to update
data on either side. One time binding has marked performance improvement as
compared to the previous two bindings discussed. This binding is a good choice
for reports where the data is loaded only once and viewed.


<TextBox x:Name="txtEnterAge" Text="{Binding Path=Age, Mode=OneTime}" Height="30" Width="150" VerticalAlignment="Center" HorizontalAlignment="Center"></TextBox>



Can you demonstrate a
Simple example of OneWay and TwoWay?

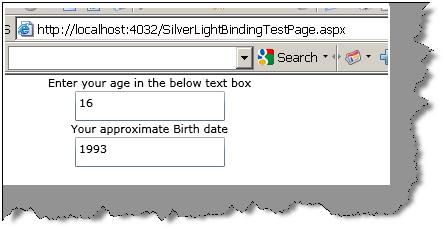

Below is a simple sample
code where in we have two text boxes one takes in the age and the other text box
calculates the approximate birth date.











Below is a simple class
which has both the properties. We have implemented ‘INotifyPropertyChanged'
interface so that we can have two way communication for the year property.


using System;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Ink;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
//
using System.ComponentModel;
namespace SilverLightBinding
{
public class clsDate : INotifyPropertyChanged
{
public event PropertyChangedEventHandler PropertyChanged;

private int _intYear;
private int _intAge;
public int Year
{
set
{
_intYear = value;
OnPropertyChanged("Year");

}
get
{
return _intYear;
}

}
public int Age
{
set
{
_intAge = value;
Year = DateTime.Now.Year - _intAge;
}
get
{
return _intAge;
}
}
private void OnPropertyChanged(string property)
{
if (PropertyChanged != null)
{
PropertyChanged(this,
new PropertyChangedEventArgs(property));
}
}

}
}


Finally we have also binded the SilverLight UI objects with the class properties. Below is the XAML snippet for the same. One point to be noted is that ‘Age' is bounded using two way mode as we need to modify the same from the user interface.

<TextBlock VerticalAlignment="Center" HorizontalAlignment="Center"> Enter your age in the below text box</TextBlock>

<TextBox x:Name="txtEnterAge" Text="{Binding Path=Age, Mode=TwoWay}" Height="30" Width="150" VerticalAlignment="Center" HorizontalAlignment="Center"></TextBox>

<TextBlock VerticalAlignment="Center" HorizontalAlignment="Center">Your approximate birth date</TextBlock>

<TextBox x:Name="txtCurrentYear" Text="{Binding Path=Year}" Height="30" Width="150" VerticalAlignment="Center" HorizontalAlignment="Center"></TextBox>

You can download the source
code for the same at the end of this article.




What are the
different ways provided to do layout in SilverLight?


There are three ways
provided by Silverlight for layout management Canvas, Grid and Stack panel. Each
of these methodologies fit in to different situations as per layout needs. All
these layout controls inherit from Panel class. In the further sections we will
go through each of them to understand how they work.




Can you explain how
Canvas layout actually works?


Canvas is the simplest
methodology for layout management. It supports absolute positioning using ‘X'
and ‘Y' coordinates. ‘Canvas.Left' helps to specify the X co-ordinate while
‘Canvas.Top' helps to provide the ‘Y' coordinates.


Below is a simple code
snippet which shows how a rectangle object is positioned using ‘Canvas' on
co-ordinates (50,150).


<Canvas x:Name="MyCanvas">
<Rectangle Fill="Blue" Width="100"
Height="100"
Canvas.Left="50"
Canvas.Top="150"/>
</Canvas>

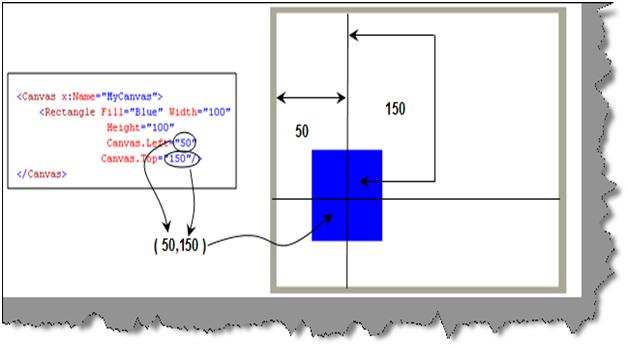

Below is how the display
looks like. When you the run the code the XAML viewer will position the
rectangle object on absolute ‘X" and ‘Y' coordinates.














How can we implement Grid Layout?


Grid layout helps you
position your controls using rows and columns. It's very similar to table
defined in HTML.

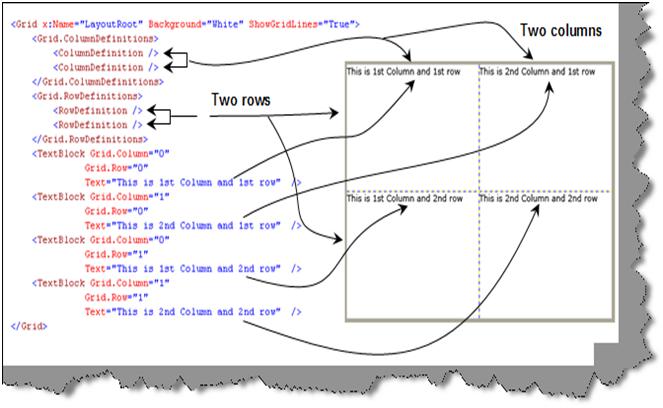

Below is a simple table
with two columns and two rows defined using ‘Grid'. We have shown how the table
display looks like. Using the ‘Grid.ColumnDefinition' we have defined two
columns and using ‘Grid.RowDefinition' we have defined two rows. We have then
created 4 text blocks which are then specified in each section using
‘Grid.Column' and ‘Grid.Row'. For instance to place in the first column we need
specify the ‘Grid.Column' as ‘0' and ‘Grid.Row' as ‘0'. We have followed the
same pattern for everyone and you can see all the textblocks are placed in the
appropriate sections.



How can we implement Stack Layout?



As the name so the behavior.
Stack allows you to arrange your UI elements vertically or horizontally.

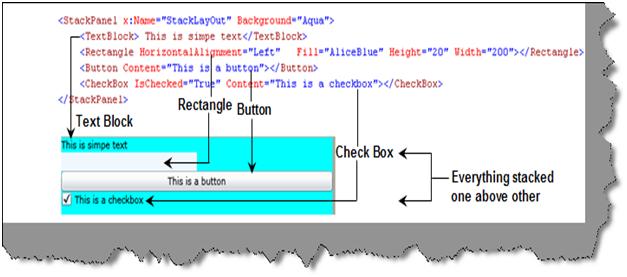

For instance below are 4
elements which are arranged in a stack panel element. You can see how the stack
aligns / stacks the elements one above other. You can also stack the UI elements
horizontally or vertically depending on your layout nature.


You can get a simple source
code which demonstrates the three layouts at the end of this article.





What are the different steps involved in consuming WCF service in Silverlight ?



To consume WCF service is a 4
steps procedure.


Step1:-
Create your WCF Service


The first step is to create
your WCF service. When we create a WCF service by default it creates ‘GetData'
function which takes in a integer value and returns back a string saying “You
entered 10" , in case you have passed ‘10' as value to the function. We will try
to consume this service in silverlight in the coming steps.


public class Service1 : IService1
{
public string GetData(int value)
{
return string.Format("You entered: {0}", value);
}
}

Step 2 :-
Enable cross domain for your WCF service


For this example our WCF
service and the silver light web application will be hosted in different IIS
website. In other words they will be hosted in different domains. When we talk
about different website in other words they are hosted in different domains. For
instance it's possible that your silver light web application is hosted in one
domain like www.dotnetspider.com and your WCF service is
hosted in different domain i.e. www.techulaor.com .


The WCF service needs to
enable cross domain facility so that other domains can consume the WCF service.

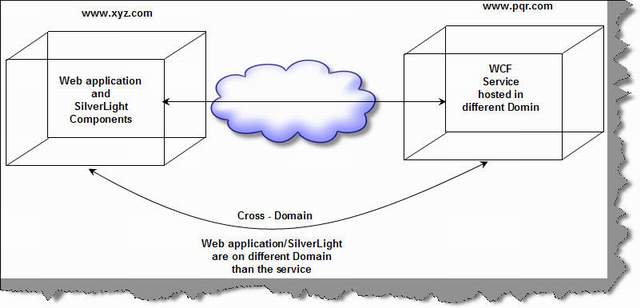

Figure :-
Cross domain


We need to create two XML
files (clientaccesspolicy.xml and crossdomain.xml) in the root directory of the
WCF service to enable cross domain functionality.


Below is the XML code
snippet for clientaccesspolicy.xml.


<?xml version="1.0" encoding="utf-8" ?>
<access-policy>
<cross-domain-access>
<policy>
<allow-from http-request-headers="*">
<domain uri="*"/>
</allow-from>
<grant-to>
<resource include-subpaths="true" path="/"/>
</grant-to>
</policy>
</cross-domain-access>
</access-policy>

Below is the XML code
snippet for crossdomain.xml


<?xml version="1.0"?>
<!DOCTYPE cross-domain-policy SYSTEM "http://www.macromedia.com/xml/dtds/cross-domain-policy.dtd">
<cross-domain-policy>
<allow-http-request-headers-from domain="*" headers="*"/>
</cross-domain-policy>


Step 3 :- Add
the WCF service reference and call the service

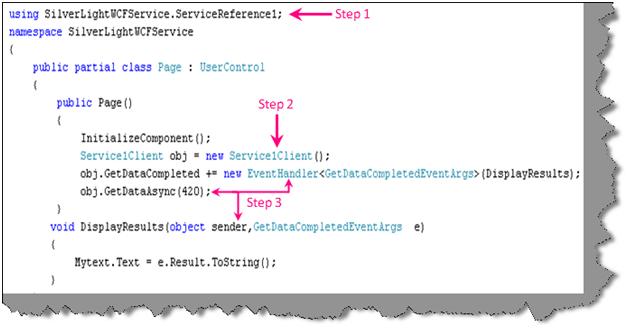

Create a simple silverlight application and add
the service reference to your silverlight project. In order to call the WCF
service we need to define event handlers.To consume the WCF service is a three
step procedure. In the first step refer the name space. In second step1 create
the object of your WCF service. In the final step we need to create a event
handler which will get the results sent by the WCF service
.













One of the important points to note is that the
function ‘GetData' is called asynchronously.


Step 4:- Add the WCF service
reference and call the service

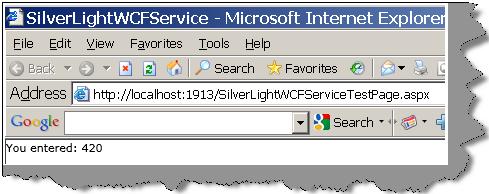

Finally compile the program and enjoy the
output.










You can get this source code at the end of this
article.




Why can't we consume ADO.NET
directly in SilverLight?



Silverlight does not have ADO.NET

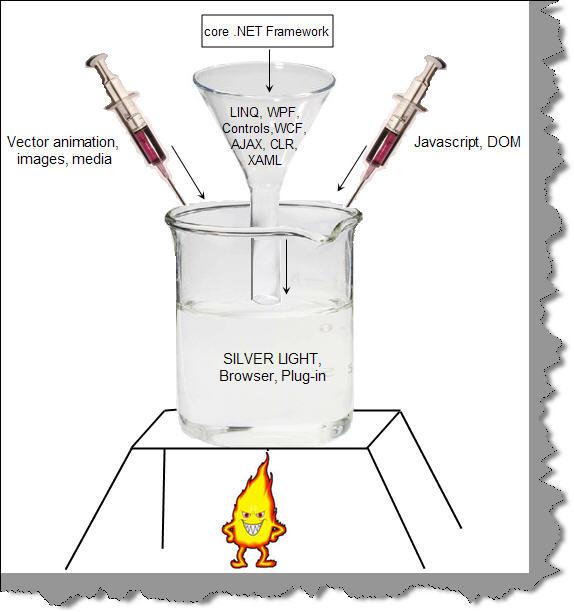

Below are the different ingredients which constitute SilverLight plugin. One of
the important points to be noted is that it does not consist of ADO.NET. In
other words you can not directly call ADO.NET code from SilverLight application.

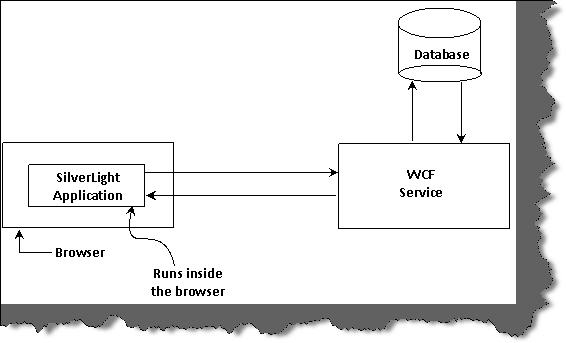

Now the other point to be noted is that it has the WCF component. In other words
you can call a WCF service.





















In other words you can create a WCF service
which does database operations and silverlight application will make calls to
the same. One more important point to be noted is do not return ADO.NET objects
like dataset etc because SilverLight will not be able to understand the same.














Below are 7 important steps which we need to
follow to consume a database WCF service in silverlight.




How can we do database
operation using SilverLight?



Step 1:- Create the
Service and Data service contract


Below is a simple customer table which has 3
fields ‘CustomerId' which is an identity column, ‘CustomerCode' which holds the
customer code and ‘CustomerName' which has the name of the customer. We will
fire a simple select query using WCF and then display the data on the
SilverLight grid.























Field




Datatype




CustomerId




int




CustomerCode




nvarchar(50)




CustomerName




nvarchar(50)




As per the customer table specified above we need
to first define the WCF data contract. Below is the customer WCF data contract.


[DataContract]
public class clsCustomer
{
private string _strCustomer;
private string _strCustomerCode;

[DataMember]
public string Customer
{
get { return _strCustomer; }
set { _strCustomer = value; }
}

[DataMember]
public string CustomerCode
{
get { return _strCustomerCode; }
set { _strCustomerCode = value; }
}
}

We also need to define a WCF service contract
which will be implemented by WCF concrete classes.


[ServiceContract]
public interface IServiceCustomer
{
[OperationContract]
clsCustomer getCustomer(int intCustomer);
}


Step 2:- Code the WCF service




Now that we have defined the data contract and
service contract it's time to implement the service contract. We have
implemented the ‘getCustomer' function which will return the ‘clsCustomer'
datacontract. ‘getCustomer' function makes a simple ADO.NET connection and
retrieves the customer information using the ‘Select' SQL query.



public class ServiceCustomer : IServiceCustomer
{
public clsCustomer getCustomer(int intCustomer)
{
SqlConnection objConnection = new SqlConnection();
DataSet ObjDataset = new DataSet();
SqlDataAdapter objAdapater = new SqlDataAdapter();
SqlCommand objCommand = new SqlCommand("Select * from Customer where CustomerId=" + intCustomer.ToString());
objConnection.ConnectionString = System.Configuration.ConfigurationManager.ConnectionStrings["ConnStr"].ToString();
objConnection.Open();
objCommand.Connection = objConnection;
objAdapater.SelectCommand = objCommand;
objAdapater.Fill(ObjDataset);
clsCustomer objCustomer = new clsCustomer();
objCustomer.CustomerCode = ObjDataset.Tables[0].Rows[0][0].ToString();
objCustomer.Customer = ObjDataset.Tables[0].Rows[0][1].ToString();
objConnection.Close();
return objCustomer;
}
}




Step 3:- Copy
the CrossDomain.xml and ClientAccessPolicy.XML file




This WCF service is going to be called from an outside domain, so we need to
enable the cross domain policy in the WCF service by creating ‘CrossDomain.xml'
and ‘ClientAccessPolicy.xml'. Below are both the code snippets. The first code
snippet is for cross domain and the second for client access policy.



<?xml version="1.0"?>
<!DOCTYPE cross-domain-policy SYSTEM "http://www.macromedia.com/xml/dtds/cross-domain-policy.dtd">
<cross-domain-policy>
<allow-http-request-headers-from domain="*" headers="*"/>
</cross-domain-policy>





<?xml version="1.0" encoding="utf-8" ?>
<access-policy>
<cross-domain-access>
<policy>
<allow-from http-request-headers="*">
<domain uri="*"/>
</allow-from>
<grant-to>
<resource include-subpaths="true" path="/"/>
</grant-to>
</policy>
</cross-domain-access>
</access-policy>





Step 4:- Change the WCF
bindings to ‘basicHttpBinding'



Silverlight consumes and generates proxy for only ‘basicHttpBinding' , so we
need to change the endpoint bindings accordingly.





<endpoint address="" binding="basicHttpBinding" contract="WCFDatabaseService.IServiceCustomer">





Step 5:- Add service reference




We need to consume the service reference in silverlight application using ‘Add
service reference' menu. So right click the silverlight project and select add
service reference.



Step 6 :- Define the
grid for Customer Name and Customer Code



Now on the silverlight side we will create a ‘Grid' which has two columns one
for ‘CustomerCode' and the other for ‘CustomerName'. We have also specified the
bindings using ‘Binding path' in the text block.




<Grid x:Name="LayoutRoot" Background="White">
<Grid.ColumnDefinitions>
<ColumnDefinition></ColumnDefinition>
<ColumnDefinition></ColumnDefinition>
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="20"></RowDefinition>
<RowDefinition Height="20"></RowDefinition>
</Grid.RowDefinitions>
<TextBlock x:Name="LblCustomerCode" Grid.Column="0" Grid.Row="0" Text="Customer Code"></TextBlock>
<TextBlock x:Name="TxtCustomerCode" Grid.Column="1" Grid.Row="0" Text="{Binding Path=CustomerCode}"></TextBlock>
<TextBlock x:Name="LblCustomerName" Grid.Column="0" Grid.Row="1" Text="Customer Name"></TextBlock>
<TextBlock x:Name="TxtCustomerName" Grid.Column="1" Grid.Row="1" Text="{Binding Path=Customer}"></TextBlock>
</Grid>





Step 7:- Bind the WCF service with
the GRID



Now that our grid is created its time to bind the WCF service with the grid. So
go to the behind code of the XAML file and create the WCF service object. There
are two important points to be noted when we call WCF service using from
SilverLight:-



  • We need to call the WCF
    asynchronously, so we have called ‘getCustomerAsynch'. Please note this
    function is created by WCF service to make asynchronous calls to the method
    / function.


  • Once the function
    completes its work on the WCF service it sends back the message to
    silverlight client. So we need to have some kind of delegate method which
    can facilitate this communication. You can see we have created a
    ‘getCustomerCompleted' method which captures the arguments and ties the
    results with the grid ‘datacontext'.





public partial class Page : UserControl
{
public Page()
{
InitializeComponent();
ServiceCustomerClient obj = new ServiceCustomerClient();
obj.getCustomerCompleted += new EventHandler<getCustomerCompletedEventArgs>(DisplayResults);
obj.getCustomerAsync(1);
}
void DisplayResults(object sender, getCustomerCompletedEventArgs e)
{
LayoutRoot.DataContext = e.Result;

}
}

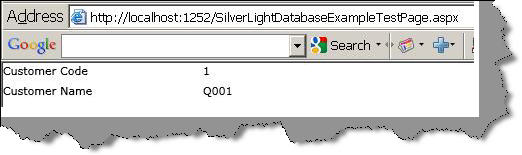

You can now run the project and see how the
silverlight client consumes and displays the data.










Source Code







Comments

No responses found. Be the first to comment...


  • Do not include your name, "with regards" etc in the comment. Write detailed comment, relevant to the topic.
  • No HTML formatting and links to other web sites are allowed.
  • This is a strictly moderated site. Absolutely no spam allowed.
  • Name:
    Email:
