4 Simple Steps to Consume WCF Service using Silverlight

• Introduction



• Other Silverlight FAQs



• Step 1: Create Your WCF Service



• Step 2: Enable Cross Domain for Your WCF Service



• Step 3: Add the WCF Service Reference



• Step 4: Call the Service

Introduction

This article will talk about 4 simple steps which will assist you to consume WCF service in a Silverlight application. It also has a simple sample source code which demonstrates all the 4 steps practically.

I have collected around 400 FAQ questions and answers in WCF, WPF, WWF, SharePoint, design patterns, UML, etc. Feel free to download these FAQ PDFs from my site http://www.questpond.com.

Other Silverlight FAQs

In case you are a complete fresher to Silverlight, then below are some Silverlight FAQs which can give you a quick start in this topic.


Silverlight FAQ Part 1

This tutorial has 21 basic FAQs which will help you understand WPF, XAML, help you build your first Silverlight application and also explain the overall Silverlight architecture.

SilverLight FAQ Part 2 (Animations and Transformations)

This tutorial has 10 FAQ questions which start with Silverlight animation fundamentals and then show a simple animated rectangle. The article then moves ahead and talks about 4 different ways of transforming the objects.

Step 1: Create Your WCF Service

The first step is to create your WCF service. When we create a WCF service, by default it creates ‘GetData’ function which takes in an integer value and returns back a string saying “You entered 10” , in case you passed ‘10’ as value to the function. We will try to consume this service in Silverlight in the coming steps:

public class Service1 : IService1
{
    public string GetData(int value)
    {
        return string.Format("You entered: {0}", value);
    }
}

Step 2: Enable Cross Domain for Your WCF Service

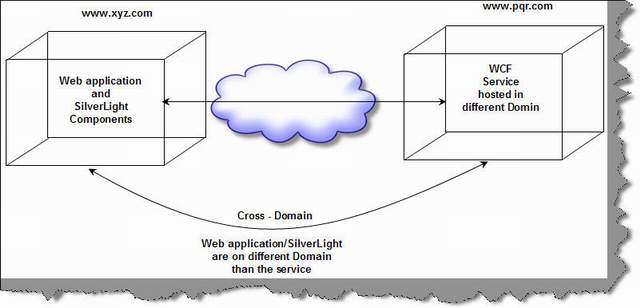

For this example, our WCF service and the Silverlight web application will be hosted in different IIS websites. In other words, they will be hosted in different domains. When we talk about different website, in other words they are hosted in different domains. For instance, it’s possible that your Silverlight web application is hosted in one domain like www.xyz.com and your WCF service is hosted in different domain i.e. www.pqr.com.

The WCF service needs to enable cross domain facility so that other domains can consume the WCF service.

We need to create two XML files (clientaccesspolicy.xml and crossdomain.xml) in the root directory of the WCF service to enable cross domain functionality.
Below is the XML code snippet for clientaccesspolicy.xml:

<?xml version="1.0" encoding="utf-8" ?>
<access-policy>
<cross-domain-access>
<policy>
<allow-from http-request-headers="*">
<domain uri="*"/>
</allow-from>
<grant-to>
<resource include-subpaths="true" path="/"/>
</grant-to>
</policy>
</cross-domain-access>
</access-policy>

Below is the XML code snippet for crossdomain.xml:

<?xml version="1.0"?>
<!DOCTYPE cross-domain-policy SYSTEM
	"http://www.macromedia.com/xml/dtds/cross-domain-policy.dtd">
<cross-domain-policy>
<allow-http-request-headers-from domain="*" headers="*"/>
</cross-domain-policy>

Step 3: Add the WCF Service Reference

Create a simple Silverlight application and add the service reference to your Silverlight project. In order to call the WCF service, we need to define event handlers.

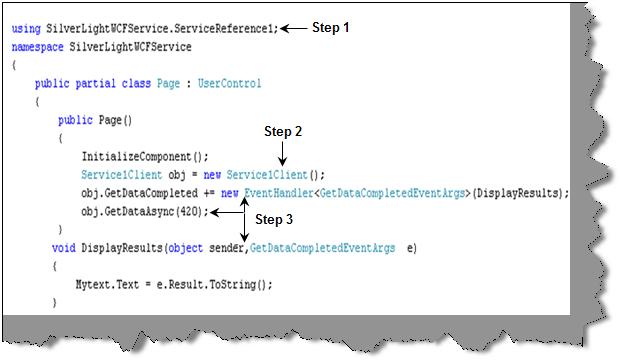

To consume the WCF service is a three step procedure.

• In the first step, refer to the name space.



• In the second step, create the object of your WCF service.



• In the final step, we need to create an event handler which will get the results sent by the WCF service.

One of the important points to note is that the function ‘GetData’ is called asynchronously.

Step 4: Call the Service

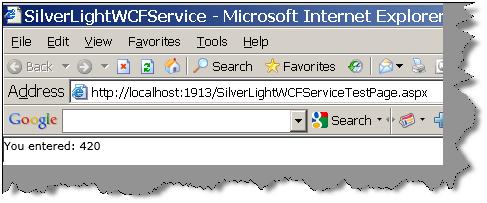

Finally compile the program and enjoy the output.
